To successfully add images to reports, it is essential that the report definition uses the Image Proxy, instead of attempting to refer to the image network location.
Step 1. Ensure the Image Proxy Setup is complete

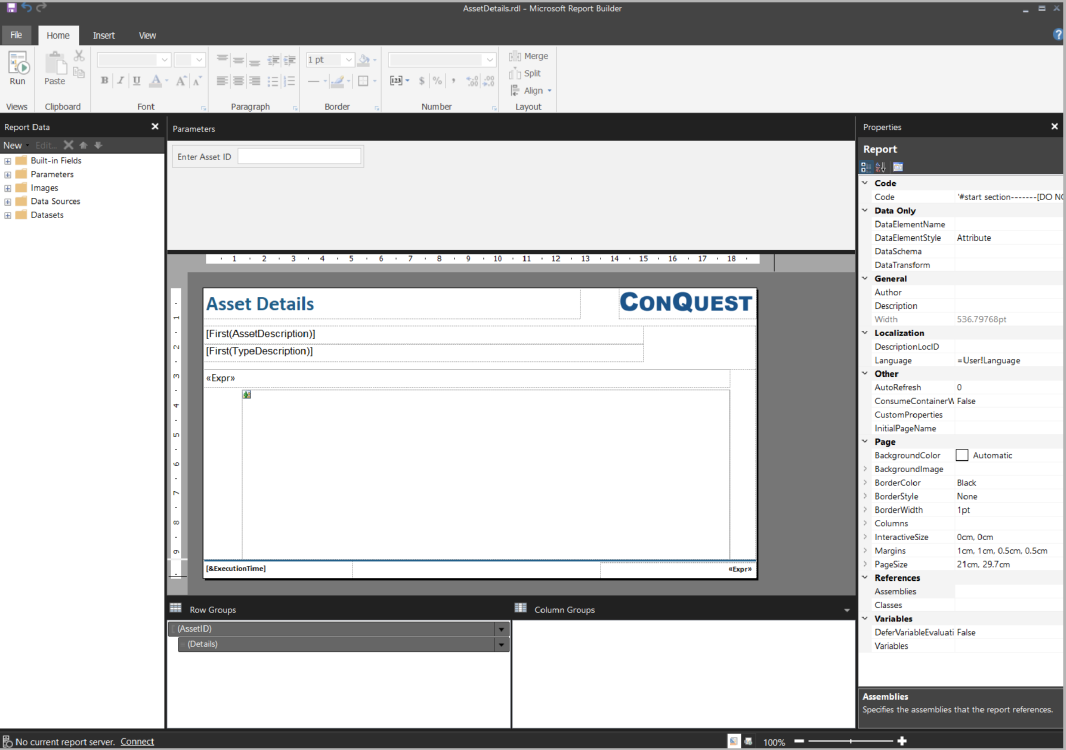

Step 2. Edit a report with MS Report Builder
Step 3. Compose a query selecting the file path normally, e.g., tblAssetDoc.Address

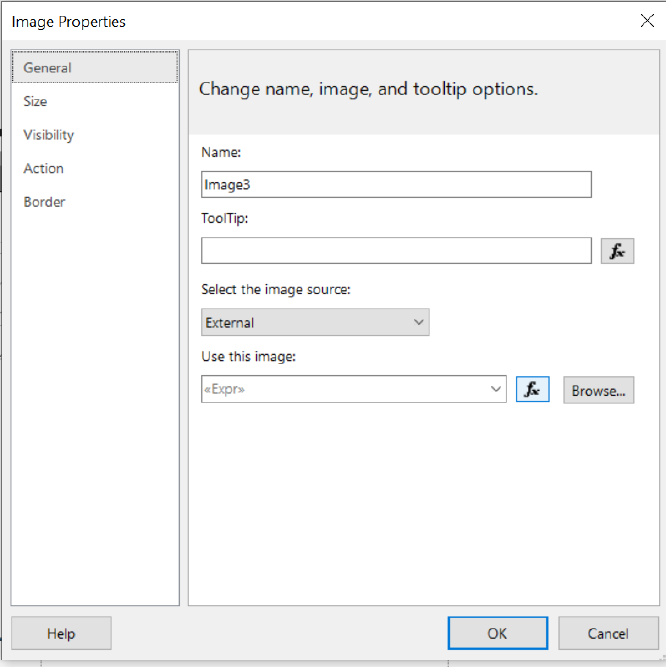

Step 4. Right-click on the image field to edit the Image Properties

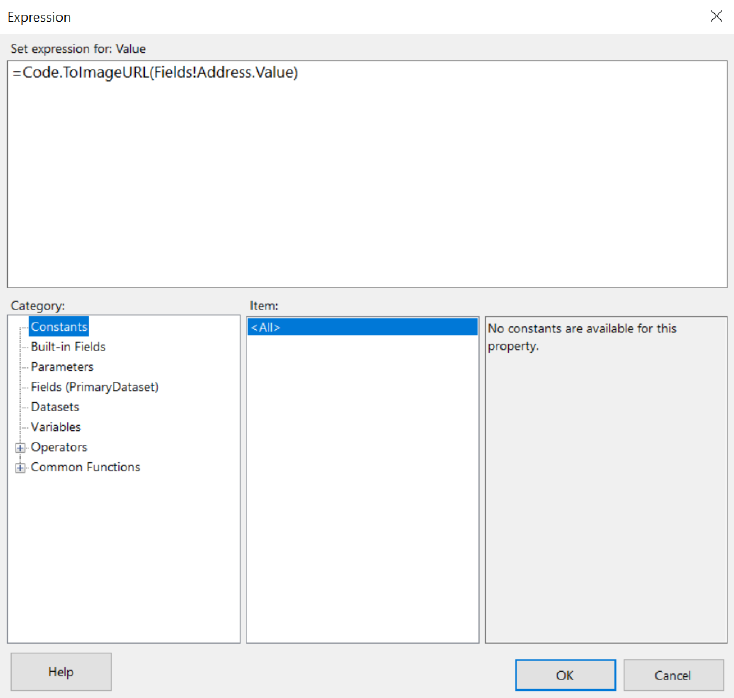

Step 5. Click on the formula button to change the Expression on the Use this image section
Step 6. Wrap the Address field with the following
expression:
Code.ToImageURL( )
Step 7. Save and upload the new report definition using the Report Manager
The function used on the expression is not available to debug and troubleshoot reports on the MS Report Builder. It is a feature of Conquest and is only available after the report is uploaded.
