The Conquest Extensibility model supports the creation of Validations to ensure valid data is entered in appropriate fields. The Conquest – SMEC Interface includes some Validation / Lookup pairs that ensure that only valid data is entered into Conquest for subsequent update back to SMEC. The Validation pairs are described in the following table:
|
Description |
Validation Function |
Lookup Function |
|
Treatment Code |
uiValidateSMECSurfaceTreatment |
uiLookupSMECSurfaceTreatment |
|
Surface Material |
uiValidateSMECSurfaceMaterial |
uiLookupSMECSurfaceMaterial |
|
Pavement Material |
uiValidateSMECPavementMaterial |
uiLookupSMECPavementMaterial |

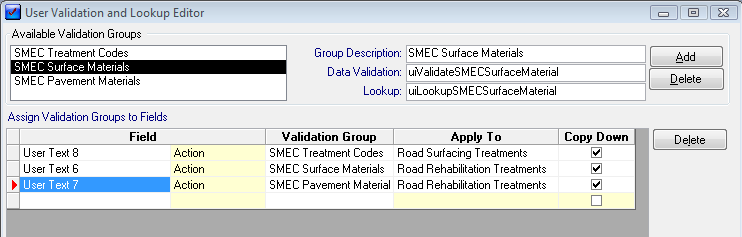

The following diagram shows a typical configuration in the Conquest Validation editor that will support the valid entry of SMEC data into relevant Actions.
You should refer to the Conquest Validation Editor reference for more information on setting up validations.
