User Interface
The User Interface functionality allows the writing and reading of one or more Asset IDs to a temporary table as an alternative way of selecting Assets. The IDs can be written and read by Conquest, Conquest Map and external software.

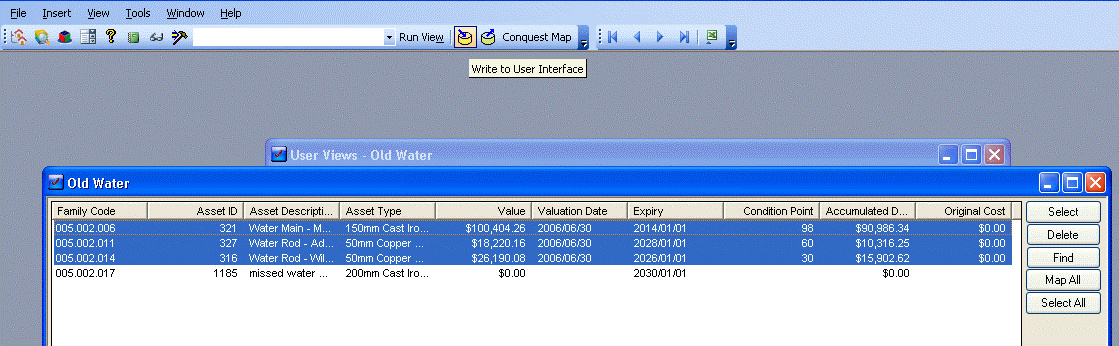

The ‘Write’ button has the icon with an arrow pointing into it and is enabled from:
•An Asset selected in the Asset Explorer Hierarchy (left pane)
•One or more Assets selected in the Asset Explorer List (right pane)
•The Asset form
•One or more Assets selected in a View of Assets
•One or more Assets selected on the map in Conquest Map
Clicking the ‘Write’ button will place the selected assets into the interface table.
The ‘Read’ button has an icon with an arrow pointing out of it and is always enabled.
Clicking the ‘Read’ button will read the Interface table and, for many Asset IDs, display a list or, for a single ID, open the Asset form.
