Conquest Map Manager

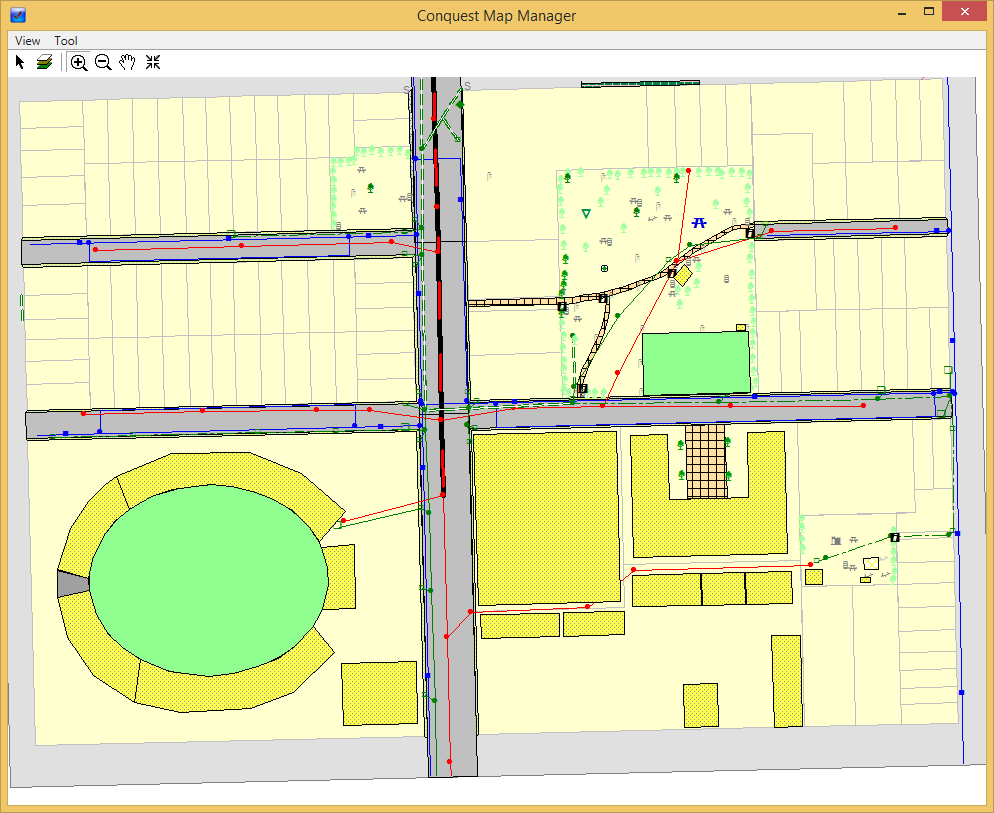

Conquest Map Manager is mapping functionality built into the CMTPC Administrator Form. All it requires is for CMTPC to have a current connection to your Conquest, server side database. From that connection it will acquire and display a primary (default) Conquest Map View:

There are two Menus on the top left-hand of the Form:

      View

      Refresh

      Zoom to Layer. Opens a Layer Selector for you to pick from then applies Zoom settings for that layer, if there are any

      Tool

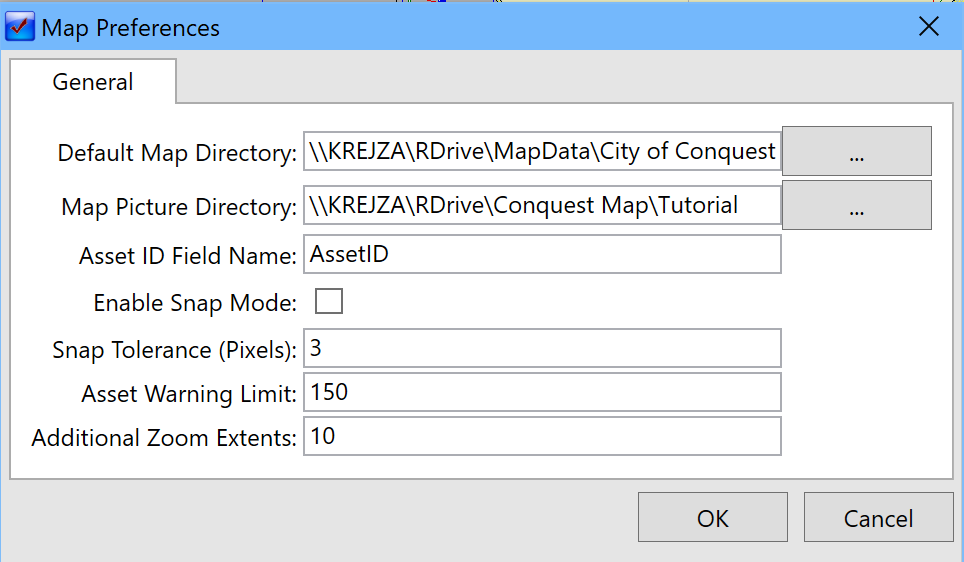

      Map Preferences. The default paths and settings for Conquest Map

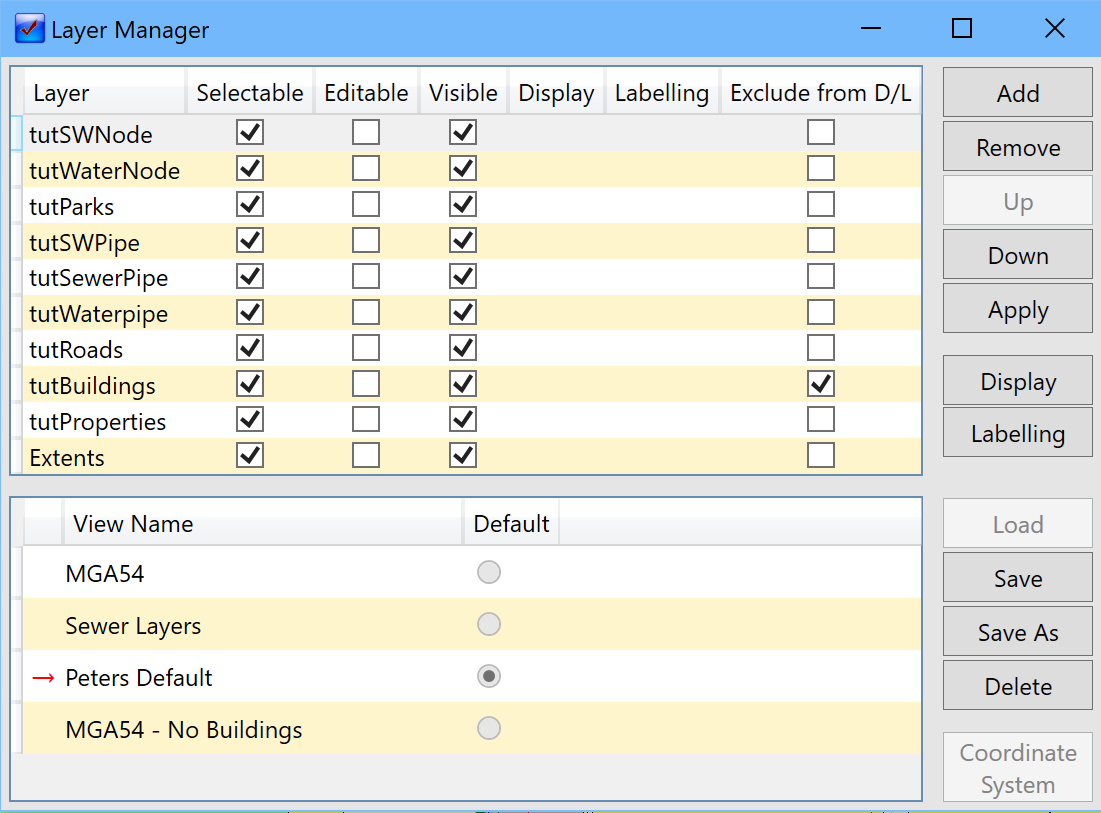

      Layer Manager. A powerful tool for setting the attributes and behaviours of your Map Layers

A toolbar for navigating the current Map View are provided for temporary adjustments to the appearance of the Map Layers in the current window. Next time you open the Map Manager the layers will have reverted to their saved configuration. Permanent changes are made with the Layer Manager tool:

      Select

      Layer Control

      Zoom In

      Zoom Out

      Drag

      Centre
