Code Lists and Codes are used throughout Conquest to build Picklists. Codes are the items that make up a list.
There are five types of Code Lists:
Code Lists and Codes:
Code List Category |
Description |
Condition Lists |
Used for the specific purpose of allocating a condition rating and score for a Condition Attribute |
Consequences of Failure (Needs a Licence to be visible) |
These are lists that are used to score Consequences of Failure in the Conquest Risk Module |
Element Lists |
Used to define the different elements of an Asset that would be used to record a Defect |
System Lists |
Predefined Lists used by Conquest, which cannot be added or deleted as a whole, although the Codes within them are fully editable. |
User Lists |
User Defined Lists, to extend the data for Assets, Defects or Actions and Asset Inspections |

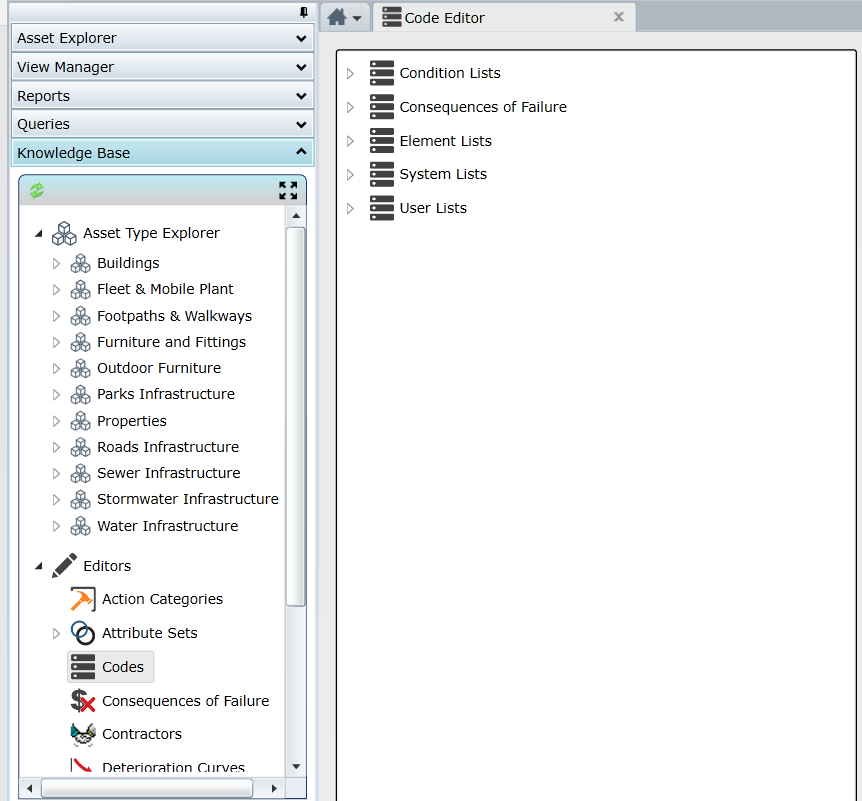

The Code Editor gives access to the data underlying Conquest Picklists:
Field |
Description |
Code Caption |
This is the name of the Picklist, as it appears in Conquest Forms. |
Code |
System-generated, unique number that identifies a list item. Use this value in bulk import or update files to represent an item from a Picklist. |
Text |
The name of a Picklist item. |
Points |
Used to specify the importance of an Item. Particularly significant in Priority Parameters and Conditions |
Task |
Description |
New > Code List |
Creates a new Picklist in the selected section. |
Delete Code List |
Deletes the currently selected Picklist. This can’t be done for System Lists. |
New > Code |
Creates a new item in the currently selected Picklist. |
Delete Code |
Deletes the currently selected item. |
Up/Down Arrows |
Use to move the selected item up or down in the list. |
